How does the C6X jaw crusher reliably handle the first stage of coarse crushing of metal ores under harsh operating conditions?

/

Currently, the development of domestic iron ore, gold ore, copper, lead, zinc, and other metal mines continues to heat up, with new ore processing projects being launched in large numbers and technological upgrades being carried out simultaneously in existing mines. Under the trend of industry refinement, the profit logic of mines is shifting towards stable production, cost control, and improved recovery rates. As the first process in the metal ore beneficiation production line, the performance and adaptability of the jaw crusher are related to the operational stability and overall efficiency of the entire production line.

I. The Strategic Position of Jaw Crusher in Metal Mineral Processing Metal ores are generally characterized by high hardness, strong abrasiveness, and uneven particle size, resulting in complex operating conditions. Under the "more crushing, less grinding" principle, the jaw crusher, as the coarse crushing hub, undertakes the core function of raw ore pretreatment. In the standard process path—blasting of raw ore → jaw crusher coarse crushing → cone crusher medium and fine crushing → screening → grinding and sorting—the practical value of the jaw crusher is concentrated in three main dimensions:

1）. Stable Output, Ensuring Smooth Operation Throughout the Process: Uneven particle size distribution in coarse crushing can easily cause jamming and stalling in downstream cone crushers and ball mills, leading to periodic shutdowns. By optimizing the chamber shape and motion parameters, jaw crushers can output uniform materials, ensuring stable feed to subsequent processes and reducing capacity losses caused by abnormal shutdowns.

2）. Optimized Crushing Ratio, Reducing Energy Consumption in Mineral Processing: Grinding is a high-energy-consuming stage in the mineral processing flow. By rationally configuring coarse crushing with subsequent medium and fine crushing, large ore pieces are pre-crushed to suitable particle sizes, stabilizing mill loads, reducing energy consumption per ton of ore, and making the grinding and beneficiation process run more smoothly, helping mines control costs effectively.

3）. Integrating Pre-Tail-Disposal Process, Improving Feed Grade: For ores with large grade fluctuations, pre-screening can be incorporated into the coarse crushing stage to remove waste rock in advance, reducing ineffective feed and improving the effective feed grade. This increases concentrate output and resource utilization rate with the same energy consumption.

II. C6X Jaw Crusher: Adapted to the Harsh Operating Conditions of Metal Mines To adapt to metal mining projects of different scales and operating conditions, Liming Heavy Industry has built a full range of jaw crushers, including C6X, C5X, PEW, and PE models, which can be flexibly matched according to feed size, site conditions, and production capacity. Among them, the C6X series has undergone several structural upgrades specifically designed for the high hardness, continuous operation, and strong abrasion characteristics of metal mines, making it suitable for the harsh, normalized environment of mines.

1. V-shaped crushing chamber for high efficiency and large capacity: An innovative V-shaped feeding structure, combined with optimized moving jaw motion parameters, expands the actual feed size and crushing stroke, resulting in more thorough material crushing and improved throughput. This effectively solves the problem of feeding large chunks of raw metal ore, meeting the needs of high-capacity coarse crushing.

2. Upgraded structure for stable operation, lower infrastructure costs, and longer lifespan: A detachable and modular frame and integrated electromechanical design create a compact structure, reducing transportation and installation difficulties and saving infrastructure space and initial investment. A pin-shaft hinged belt drive tensioning scheme ensures stable power transmission, structurally reducing the risk of shaft breakage caused by hard rock impact. Elastic limit blocks and rubber shock-absorbing supports effectively weaken impact vibrations between the equipment and foundation, extending the overall machine's lifespan and making it suitable for long-term continuous operation in metal mines.

3. Intelligent hydraulic adjustment and automatic lubrication reduce manual maintenance: The hydraulic wedge discharge port adjustment system supports online adjustment, completing particle size switching within minutes to flexibly meet different ore types and process requirements. The automatic centralized lubrication system reduces the frequency of manual maintenance, lowering equipment wear risks and maintenance costs.

4. High-Spec Materials for Core Components, Durable and Long-Lasting: Load-bearing components such as the main shaft, toggle plate, and moving jaw body utilize high-performance forgings and superior alloy cast steel, offering impact resistance and wear resistance suitable for metal ore crushing applications. Core outsourced components are sourced from leading international brands such as SKF, FAG, and KTR, significantly improving overall machine stability and lifespan, and greatly reducing maintenance workload.

5. Specialized Environmental Calibration for High-Altitude Mines: Specifically designed for special operating environments such as high altitude, low temperature, and low oxygen, the C6X jaw crusher features specialized calibrations in its overall structure, lubrication system, and electrical system. This ensures reliable start-up and continuous operation in low-pressure and frigid environments, guaranteeing stable year-round production in mines in challenging conditions.

III. Real-world Case Studies Demonstrating Core Strength

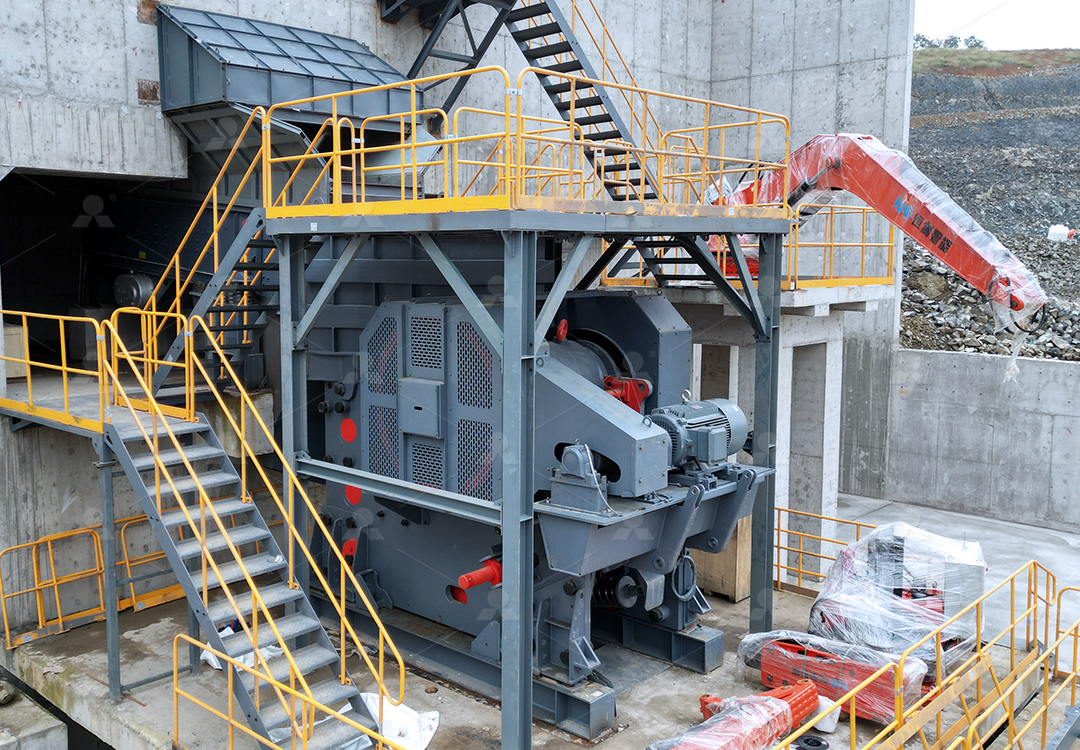

1. Inner Mongolia 12 Million Ton/Year Magnetite Crushing and Processing Project

Project Scale: Three lines: 6 million tons/year, 2.5 million tons/year, and 350,000 tons/year

Equipment Configuration: C6X jaw crusher, HST single-cylinder hydraulic cone crusher, HPT multi-cylinder hydraulic cone crusher, S5X vibrating screen

Project Characteristics: The original production line suffered from an imbalance in its three-stage crushing process and insufficient capacity. After the technical upgrade introduced the C6X jaw crusher and HST cone crusher, the problem of material jamming in coarse crushing was completely resolved, crushing capacity increased by over 20%, the overall crushing ratio distribution was optimized, and the load on fine crushing and screening was significantly reduced, leading to multiple subsequent collaborations.

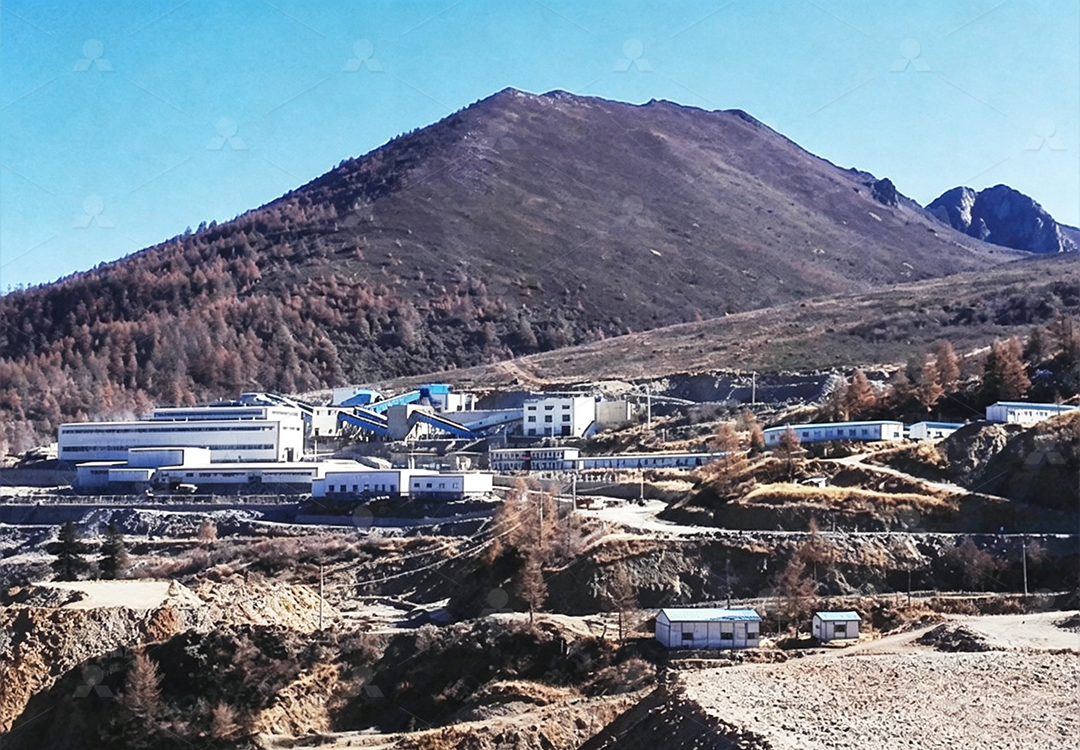

2. Sichuan Liangshan Gold Mine Processing Project (120-150 tons/hour)

Equipment Configuration: PEW jaw crusher, HST single-cylinder hydraulic cone crusher, HPT multi-cylinder hydraulic cone crusher, S5X vibrating screen

Project Features: Located at an altitude of 4200 meters on a plateau, the oxygen concentration is only 60% of that at sea level, resulting in a harsh working environment. The technical upgrade transformed the original two-stage closed-circuit process into a three-stage closed-circuit process, achieving crushing capacity and feed particle size that meet customer requirements, gaining the owner's approval under stringent operating conditions.

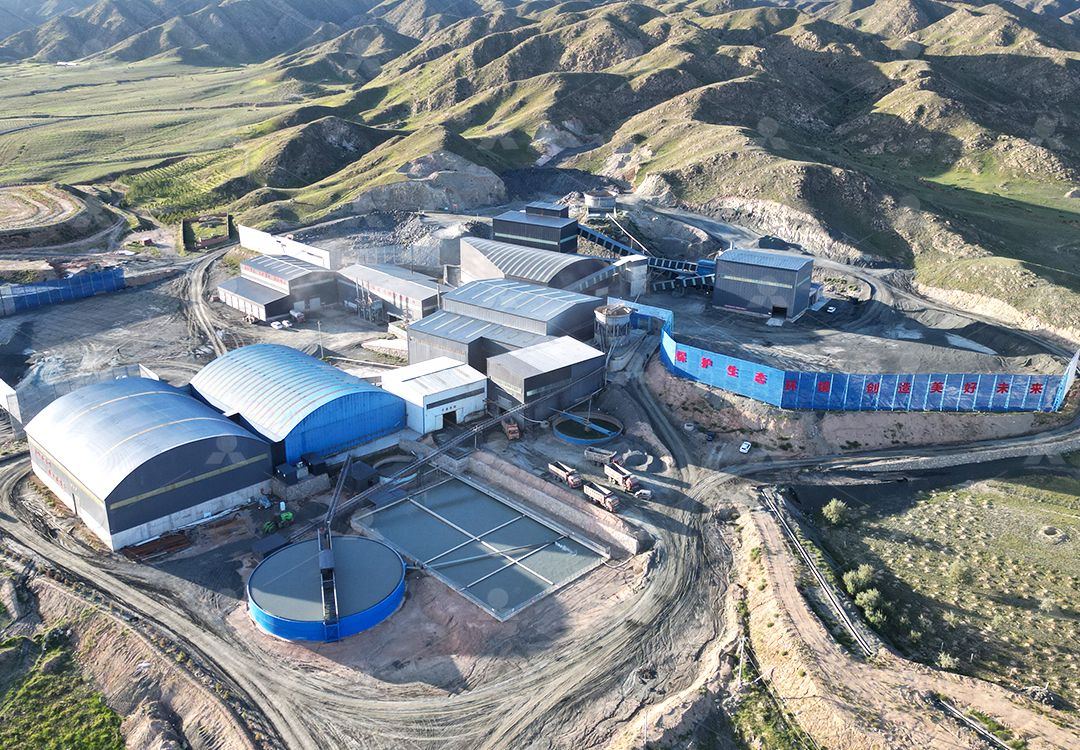

3. Liaoning 1.5 Million Tons/Year Magnesite Ore Crushing and Processing Project

Equipment Configuration: F5X feeder, PEW jaw crusher, HST single-cylinder hydraulic cone crusher, S5X vibrating screen, etc.

Project Highlights: The project's end product is high-purity magnesium, requiring strict purity assurance and particle size control in the crushing process. Customized crushing and screening solutions match the mineral processing and purification process needs, helping customers achieve their high-value-added product quality goals.

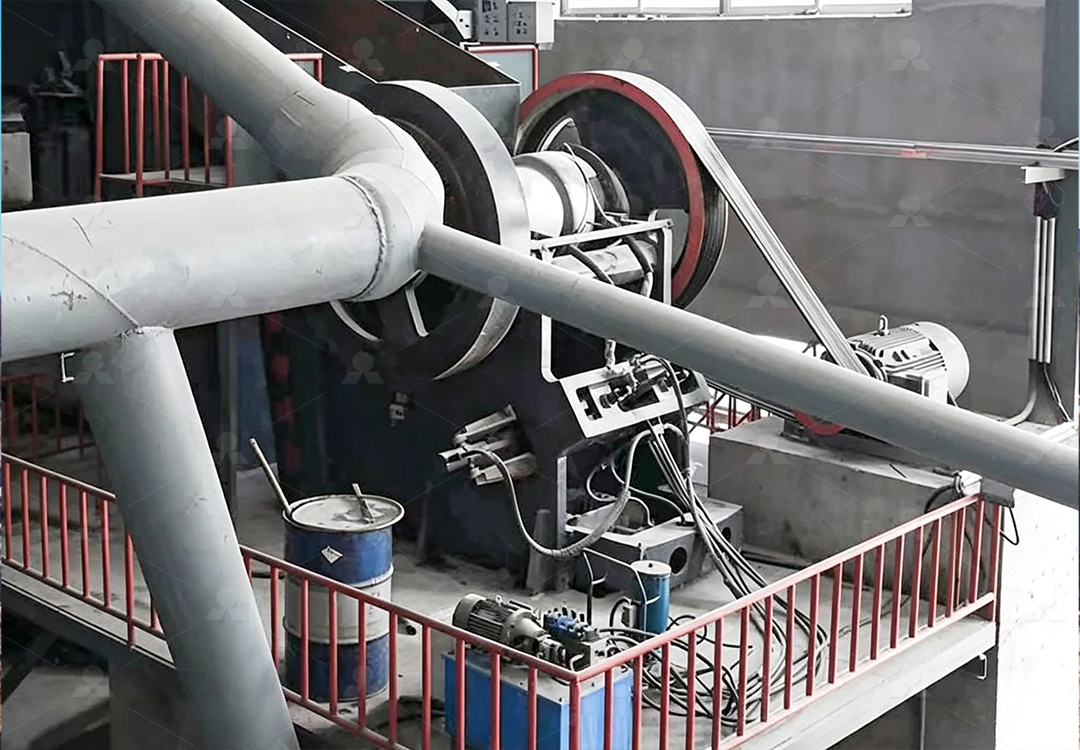

4. Shanxi Linfen 500-ton-per-hour iron ore crushing and beneficiation project

Equipment configuration: F5X feeder, SP feeder, C6X jaw crusher, HST single-cylinder hydraulic cone crusher (4 units with different chamber types), S5X vibrating screen

Project features: The system adopts a three-stage closed-loop and multi-stage magnetic separation circulation process, covering the entire process of feeding, coarse crushing, medium-coarse crushing, medium-fine crushing, shaping, screening, and magnetic separation, crushing ≤850mm iron ore into 10mm small pieces, and the downstream grinding and beneficiation system produces high-grade iron concentrate.

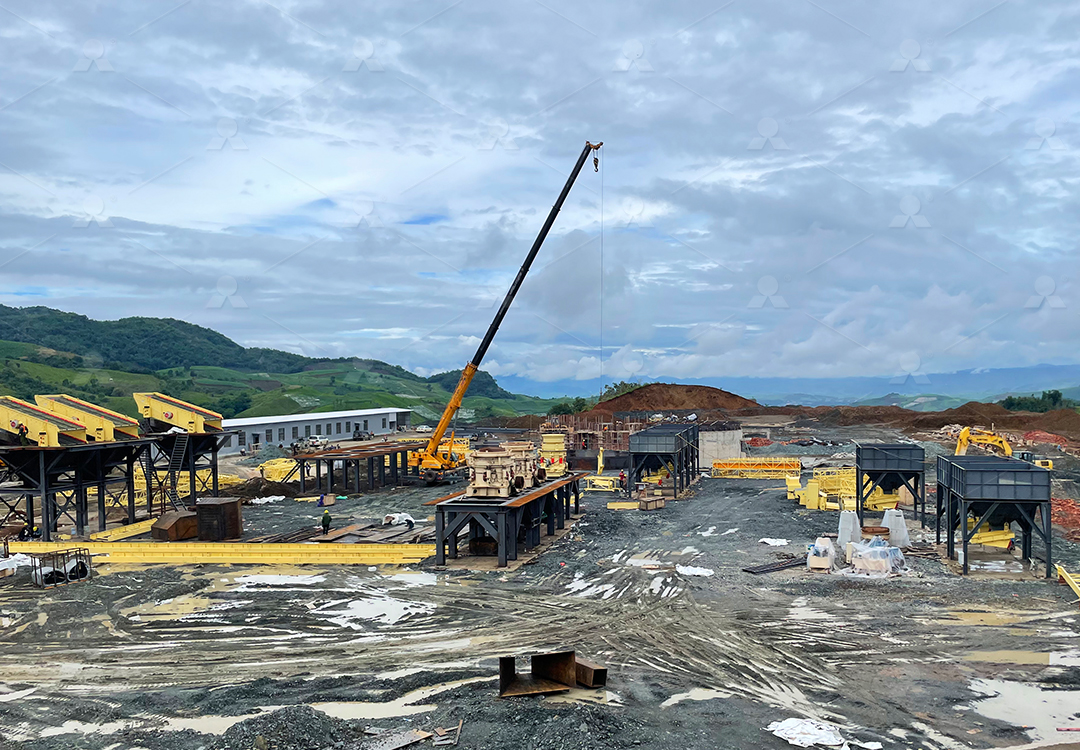

5. Myanmar Large-Scale Antimony Ore Crushing and Beneficiation Project (500 tons/hour)

Equipment Configuration: F5X Heavy-Duty Bar Feeder, C5X Jaw Crusher, HPT Multi-Cylinder Hydraulic Cone Crusher, S5X Vibrating Screen

Project Features: The solution closely addresses the characteristics of antimony ore and the need for "more crushing and less grinding." The crushed product is compatible with photoelectric enrichment processes, creating raw material conditions for downstream grinding and flotation, and reducing energy consumption in grinding and beneficiation. The project will produce antimony concentrate for use in flame retardants and other fields, setting a model for customized solutions for overseas metal mines.

IV. Starting with Coarse Crushing, Strengthening the Long-Term Competitiveness of Mines The development of metal mines ultimately boils down to a balance between stable processes, controllable costs, and consistent quality. As the first stage in the mineral processing flow, coarse crushing, with its equipment adaptability and process rationality, profoundly impacts the long-term operational efficiency of mines. Leveraging its full range of jaw crusher products and extensive experience in metal mining projects, Liming Heavy Industry can provide suitable crushing equipment and complete solutions tailored to different ore types, operating conditions, and project needs. This ensures stable production line operation from the source, helping metal mines achieve their long-term goals of stable production, cost control, and improved quality and efficiency.
