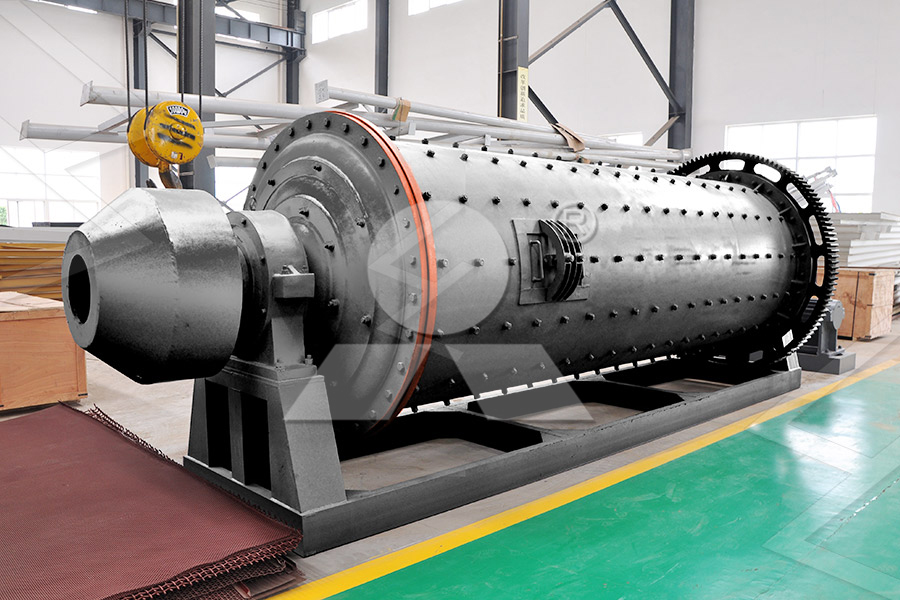

Gold ore ball mill
Ball Mill is mainly used in metallurgy, chemical engineering, electricity, cement and other industrial and mining enterprises to grinding all kinds of
ores and other grindable materials.
Application：
This mill is mainly applied to the material processing of metallurgy, building materials, chemical engineering, mining and other industries.
Material：
It can grind limestone, calcite, marble, talcum, dolomite, bauxite, barite, petroleum coke, quartz, iron ore, phosphate rock, gypsum, graphite and other non-
inflammable and non-explosive mineral materials with Moh’s hardness below 9 and humidity lower than 6%.
Specifications – Technical Data
| Model | Rev. of barrel(rpm) | Max ball load(t) | Maximum feed size(mm) | Output fineness(mm) | Capacity(tph) | Power (kW) | Weight (t) |
| Ф900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Ф900×3000 | 41 | 2.5 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| Ф1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 11.5 |
| Ф1200×3000 | 32 | 5 | ≤25 | 0.075-0.6 | 1.6-5 | 45 | 12.8 |
| Ф1200×4500 | 32 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ф1500×3000 | 31 | 6.8 | ≤25 | 0.074-0.4 | 2-7 | 75 | 17 |
| Ф1500×4500 | 27 | 10.5 | ≤25 | 0.074-0.4 | 3.5–8 | 110 | 21 |
| Ф1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-10 | 132 | 24.7 |
| Ф1830×3000 | 26 | 13 | ≤25 | 0.074-0.4 | 4-12 | 160 | 28 |
| Ф1830×6400 | 26 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Ф1830×7000 | 26 | 25 | ≤25 | 0.074-0.4 | 6.5-22 | 210 | 36 |
| Ф2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-20 | 245 | 48.5 |
| Ф2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-50 | 380 | 56 |
