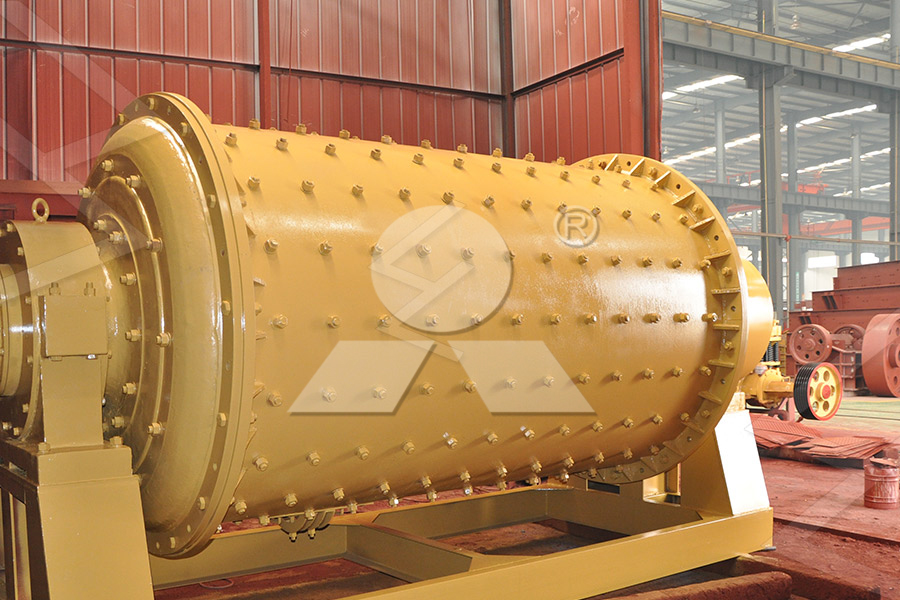

Energy Saving Ball Mill
Ball mill is the key equipment for grinding of crushed materials. It is mainly used in cement, silicate products, new building materials, refractory materials, fertilizer, ferrous and non-ferrous metal ore beneficiation, glass ceramic, etc. Besides, according to the discharging method, the ball mill can be divided into grate type and overflow type; according to the grinding method, the ball mill can be divided into the wet type and the dry type. The ball mill is applied to grind ores and other materials, and can be widely used in areas such as ore beneficiation, building materials, chemical industry, etc.
Applications:silicate products, new building materials, refractory materials,
Energy Saving Ball Mil Features:
1.Large double row self-aligning roller bearing with low friction force is used to replace sliding bearing, which is easy to start and saves 20-30% energy;
2.Large ore outlet and large capacity;
3.The mill with diameter below 2.1 meters adopts whole machine frame, which is convenient for civil construction and equipment installation;
4.Oil mist lubrication device guarantees the lubrication of all gears.
Specifications – Technical Data
| Model | Rev. of barrel(rpm) | Max ball load(t) | Maximum feed size(mm) | Output fineness(mm) | Capacity(tph) | Power (kW) | Weight (t) |
| Ф900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Ф900×3000 | 41 | 2.5 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| Ф1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 11.5 |
| Ф1200×3000 | 32 | 5 | ≤25 | 0.075-0.6 | 1.6-5 | 45 | 12.8 |
| Ф1200×4500 | 32 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ф1500×3000 | 31 | 6.8 | ≤25 | 0.074-0.4 | 2-7 | 75 | 17 |
| Ф1500×4500 | 27 | 10.5 | ≤25 | 0.074-0.4 | 3.5–8 | 110 | 21 |
| Ф1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-10 | 132 | 24.7 |
| Ф1830×3000 | 26 | 13 | ≤25 | 0.074-0.4 | 4-12 | 160 | 28 |
| Ф1830×6400 | 26 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Ф1830×7000 | 26 | 25 | ≤25 | 0.074-0.4 | 6.5-22 | 210 | 36 |
| Ф2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-20 | 245 | 48.5 |
| Ф2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-50 | 380 | 56 |
