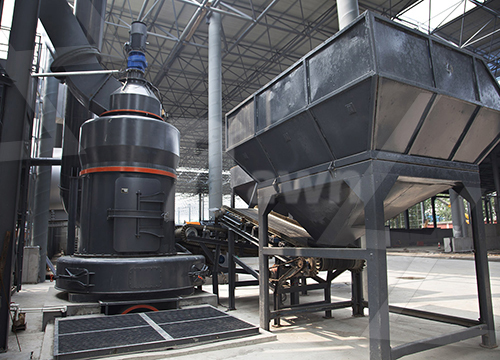

Grinding roller of MB5X mill’s advantage

15/01/2022

1. Thin Oil Lubricating Grinding Roller

Grinding roller of MB5X mill adopts thin oil lubrication. It is a technology initiated domestically which is maintenance-free and easy to operate. Thin oil lubrication is oil bath lubrication, more convenient than grease lubrication since no frequent oil-adding, and it needs lower maintenance cost.

2. No Shovel Blade Cylinder

There is no shovel blade cylinder in the grinding chamber, so ventilation area is larger and air-conveying resistance is smaller. Besides, use of large-diameter grinding roller improves the grinding efficiency directly.

3. Volute Elastic Damping Structure

Volute elastic damping structure can effectively reduce vibrating damage on the host. Between the volute and engine base, special elastic structure is applied, and in combination with setup of rubber shock pad, it could directly avoid influence of vibration of engine base on operating stability of powder concentrator, and completely eradicate the problem of shatter crack of volute and central engine due to vibration of engine base.

4. Automatic Oil-temperature Detecting Device

The host reducer is equipped with oil-temperature detecting system and heating unit, and according to the pre-set requirements, it could operate automatically under low temperature, ensuring the safe operation of host lubricating system.

5. Mesh-type Grinding Roller Hanger

Grinding roller hanger applies unusual mesh design to increase the ventilation area of the grinding chamber. This design could directly improve material-conveying efficiency while lowering the windage.

6. New Cage-type Powder Concentrator

Powder concentrator adopts low-resistance hanging cage-type powder concentrator. The advantages of this powder concentrator lies in its high efficiency and low energy consumption. Processing same kind of materials and requiring same fineness, this powder concentrator needs less electricity but it can bring higher capacity compared to the blade-type powder concentrator.

7. Integral Wear-resistant Shovel Plate

Integrated wear-resistant shovel plate could improve the durability and lower use cost of quick-wear parts. Air-intake volute is redesigned by applying wear-resistant liner, which can directly improve service life of the volute in multiples.

8. Humanized Transmission System

Transmission system of powder concentrator applies concentrated lubricating system. The system could operate automatically according to setup without shutdown and manual operation.
