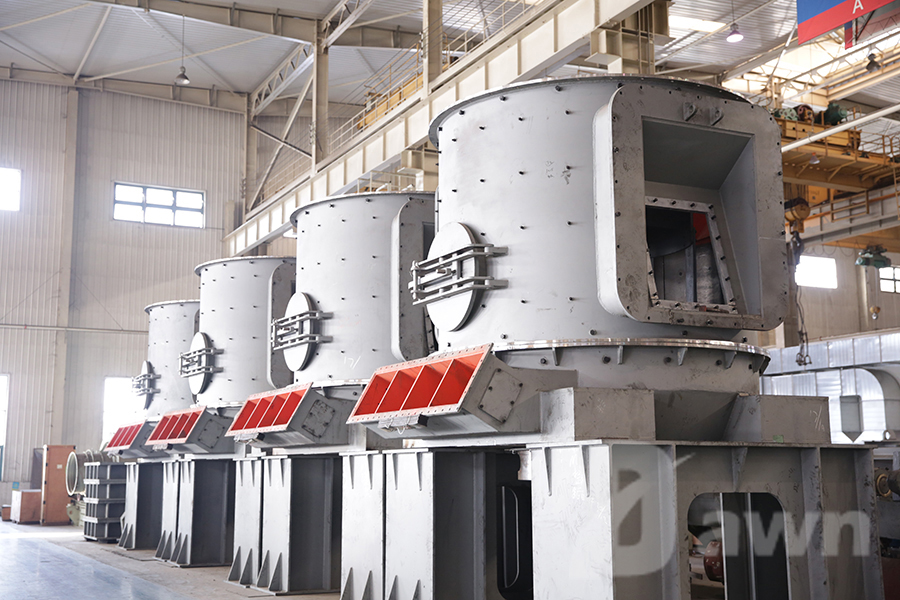

Vertical Mill
With more than 30 years of experience in mill R&D and manfacturing. Liming develops LUM ulfra-fine vertical mill on the basls of LM traditional vertical mills with the advanced technology from Germany, Japan, and Talwan.It is a large-scale ulfra-finr verfical mill for large-scale production of ulfra-fine grinding and processing of non-metallic minerals.
①LM Vertical Mill
LM Vertical Mill integrates crushing, drying, grinding, classifying and conveying together, and it is specialized in processing non-metallic minerals, pulverized coal and slag. Its coverage area is reduced by 50% compared with ball mill, and the energy consumption is saved by 30%-40% similarly.
why choose our LM Vertical Mill:
1 High Drying Ability.
2 Maintenance convenience.
3 Greener & More Automated.
4 The stability of product quality.
5 Digitalized Processing, Higher Precision.
6 Short Grinding Time & Low Iron Content.
7 Comprehensive Optimization, Lower Operating Costs.
8 The LM grinding mill can be arranged outdoors, low Investment Cost.
②LUM Vertical Roller Mill
LUM grinding mill adopts the latest Taiwan grinding roller technology and German powder separating technology. The ultrafine vertical grinding mill integrating ultrafine powder grinding, grading and transporting has become a better choice in the ultrafine powder grinding industry.
why choose our LUM Vertical Roller Mill:
1 Little attrition.
2 Environmental friendly.
3 Convenient and easy to maintenance.
4 High grinding efficiency, little pollution to the final products.
5 Secure and efficient operating principles, intelligent operating system.
6 Advanced, efficient and energy-saving powder-concentrating technology.
Specifications – Technical Data
| Series | Ore Mill | |||||||||
| Model | LM130K | LM150K | LM170K | LM190K | LM220K | LM240K | LM280K | LM340K | LM370K | |
| Disc Dia. (mm) | 1300 | 1500 | 1700 | 1900 | 2200 | 2400 | 2800 | 3400 | 3700 | |
| Capacity (t/h) | 10~30 | 13~40 | 18~57 | 23~72 | 36~114 | 41~128 | 50~196 | 70~260 | 90~320 | |
| Output fineness | micron | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 |
| mesh | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | |
| Product moisture | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Max.input size (mm) | <38 | <40 | <42 | <45 | <50 | <55 | <58 | <62 | <65 | |
| Best input moistrure | <4% | <4% | <4% | <4% | <4% | <4% | <4% | <4% | <4% | |
| input moistrure(drying required) | 4~15% | 4~15% | 4~15% | 4~15% | 4~15% | 4~15% | 4~15% | 4~15% | 4~15% | |
| Inlet air temperature (℃) | <350 | <350 | <350 | <350 | <350 | <350 | <350 | <350 | <350 | |
| Outlet air temperature (℃) | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | |
| Power (KW) | 185~220 | 250~280 | 355~400 | 450~500 | 710~800 | 800~900 | 1120 | 1800 | 2240 | |
Notes:
1. Material should be with hardness less than 7 in Mohs.
2. Hot air is only necessary if outlet moisture is required to be less than inlet moisture.
3.When grinding mateiral that is difficult to grind, please use the largest power.
| Series | Coal mill | ||||||
| Model | LM130M | LM150M | LM170M | LM190M | LM220M | LM240M | |
| Disc Dia. (mm) | 1300 | 1500 | 1700 | 1900 | 2200 | 2400 | |
| Capacity (t/h) | 10~15 | 16~22 | 20~28 | 26~35 | 35~45 | 40~50 | |
| fineness (R0.08) | <15% | <15% | <15% | <15% | <15% | <15% | |
| Coal powder moisture | <1% | <1% | <1% | <1% | <1% | <1% | |
| Max.input size (mm) | <38 | <40 | <42 | <45 | <50 | <55 | |
| input moistrure | <15% | <15% | <15% | <15% | <15% | <15% | |
| Inlet air temperature (℃) | <350 | <350 | <350 | <350 | <350 | <350 | |
| Outlet air temperature (℃) | 75~95 | 75~95 | 75~95 | 75~95 | 75~95 | 75~95 | |
| Dimension | Lmm | 3500 | 4200 | 4700 | 8500 | 10200 | 11700 |
| Wmm | 3400 | 3900 | 4500 | 5600 | 6700 | 7710 | |
| H mm | 5800 | 7100 | 8300 | 8800 | 10600 | 12200 | |
| Weight (t) | 46 | 75 | 94 | 100 | 122 | 157 | |
| Series | LM for hard materials | |||||||||
| Model | LM130N | LM150N | LM170N | LM190N | LM220N | LM240N | LM280N | LM340N | LM370N | |
| Disc Dia. (mm) | 1300 | 1500 | 1700 | 1900 | 2200 | 2400 | 2800 | 3400 | 3700 | |
| Capacity (t/h) | 7~11 | 9~13 | 11~15 | 14~20 | 22~26 | 27~35 | 48~55 | 65~89 | 90~100 | |
| Output fineness | Micron(μm) | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 |
| mesh | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | |
| Moisture of slag | ≤12% | |||||||||
| Product Blaine | ≥420㎡/kg | |||||||||
| product moisture | ≤1% | |||||||||
| Main mill power(kw) | 200 | 280 | 400 | 500 | 800 | 900 | 1120 | 1800 | 2240 | |
| Model Specification Name | LUM1125X | LUM1232X | LUM1436X |
| Intermediate diameter of the millstone （mm） | 1100 | 1200 | 1400 |
| Quantity of the rollers（piece） | 3 | 3 | 3 |
| Granularity of the feeding material D90（mm） | < 10 Max. 15mm | < 10 Max.15mm | < 10 Max.20mm |
| Moisture of the feeding material | < 3% | ||
| Capacity （t/h） | 5~14 | 7~16 | 9~18 |
| Fineness（mm） | Generally in 0.045-0.02, the finest can reach 0.01. | ||
| Power of the main motor（KW） | 250 | 315 | 355 |
| Power of multiple powder concentrator & quantity | 15KW×5 | 15KW×7 | 15KW×7 |
