HOME-PRODUCTS-MOBILE CRUSHERS

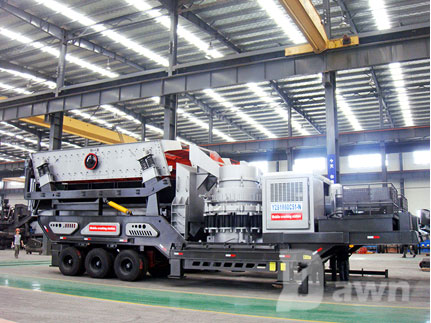

Wheeled Mobile Crusher
Dawn wheeled mobile crushers are designed with different capabilities in the reduction and sizing of aggregates for construction materials and also recycling construction waste. NK mobile crusher series, K mobile crusher series, Jaw and Cone mobile crusher series can meet the toughest demands of crushing applications with their impressive power, great performance.
NK series mobile crusher
NK mobile crushing station can be divided into mobile primary jaw crusher, mobile medium crusher and mobile vibrating screen. NK mobile station can be assembled according to the needs of customers, which has stronger applicability and wider application scope. By changing the main machine to quickly assemble the required mobile crushing station. The investment cost can be reduced and the preparation cycle can be shortened. It can satisfy customers’ diversified needs.
K mobile series crushers
K SERIES MOBILE CRUSHING & SCREENING PLANT is researched to meet customers’ demand on high quality and high output, and it is widely used in almost every field in ore, construction, recycling, etc. No matter coarse and medium crushing or fine crushing and superfine crushing and screening, K Series Mobile Crushing & Screening Plant can finish such missions brilliantly.
5 Big Advantages of K series Mobile Crushing & Screening Plant vs Stationary Plant
1 Work normally within -35 ℃ to 40 ℃
2 Equipped with generator systems
3 Moving flexible
4 Shorter transportation time and lower installation cost
5 Versatile body combining alternative equipment,meet customers personalized needs
Mobile Primary Jaw Crusher
Features
1 It adopts ship form steel structure and low vehicle chassis with light weight. The volume is controlled reasonably. Hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small.
2 Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.
3 Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.
4 The vehicle control cabinet is equipped with high-tech LCD touch screen and PLC control system. LCD touch screen with man-machine dialogue function makes it possess the functions of key start, misuse tips and protection, electrical control operations, fault and safe tips. It is convenient, efficient and secure.
5 Grizzly bars of the feeder is capable to separate out the small-sized material as the wastes. By adopting the automatic separatory hatch door, materials in the wastes hopper would flow either with the side-opening belt conveyor, or with the main materials.
6 Height of belt conveyor is adjustable. It also can be twisted and folded.
7 Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.
8 With overall streamlined body design and metallic paint spraying, this plant is the perfect combination of mechanics and aesthetics.
Specifications – Technical Data
| Model | NK100E Mobile Crusher | NK1213C Mobile Crusher |
| Power | 138.5kW | 228.5 kW |
| Weight | 35T | 31T |
| Capacity | 150-350t/h | 150-300t/h |
| Feeding hopper | ||
| Volume | 6m³ | 6m³ |
| Width | 2500mm | 2500mm |
| Vibrating screen | ||
| Model | FK0936 | FK0936 |
| Loading width | 960mm | 960mm |
| Loading length | 3600mm | 3600mm |
| Crusher | ||
| Model | PE3040 Jaw Crusher | CI5X1213 Impact Crusher |
| Motor power | 110kW | 200kW |
| Feeding depth | 760mm | – |
| Maximum feeding size | 680mm | 550mm |
| Discharge outlet | 70-150 | >30mm |
| Discharge belt | ||
| Belt conveyor width | 1000mm | 1000mm |
| Discharge Height | 3639mm | 3639mm |
| Model | NK300H Mobile Crusher (No pre-screening) | NK300H Mobile Crusher (With return screening) | NK1213 Mobile Crusher (No pre-screening) | NK1213 Mobile Crusher (With return screening) |
| Power | 283 kW | 323.5 kW | 231.5 kW | 272 kW |
| Weight | 34T | 42T | 29T | 37T |
| Capacity | 110-440t/h | 110-440t/h | 150-300 t/h | 150-300 t/h |
| Main machine | ||||
| Model | HPT300 Cone Crusher | HPT300 Cone Crusher | CI5X1213 Impact Crusher | CI5X1213 Impact Crusher |
| Maximum feeding size | 220mm | 220mm | 300mm | 300mm |
| Power | 220kW | 220kW | 200 kW | 200 kW |
| Vibrating screen | ||||
| Model | – | SKX1536 | – | SKX1536 |
| Power | – | 15kW | – | 15kW |
| Speed | – | 1000r/min | – | 1000r/min |
| Vibration intensity | – | 4.5G | – | 4.5G |
| Screen dimension (W*L) | – | 1500X3600mm | – | 1500X3600mm |
| Belt conveyor | ||||
| Feeding belt conveyor width | 1000mm | 1000mm | 1000mm | 1000mm |
| Host discharging belt conveyor width | 1000mm | 1000mm | 1000mm | 1000mm |
| Screening transporter belt width | – | 500mm | – | 500mm |
| Return belt conveyor width | – | 500mm | – | 500mm |
| Discharging belt conveyor width | – | 1200mm | – | 1200mm |
| Discharging belt conveyor height | 3334mm | 3124mm | 3334mm | 3124mm |
| SKX1860 Vibrating Screen (2 layers / 3 layers) | |
| Power | 72/79.5 kW |
| Weight | 27/31T |
| Capacity | 70-600t/h |
| Vibrating screen | |
| Power | 22kW |
| Screen dimension (W*L) | 1800X6000mm |
| Speed | 1000r/min |
| Vibration intensity | 4.5G |
| Belt conveyor | |
| Feeding belt conveyor width | 1000mm |
| Side-out belt conveyor width | 650mm |
| Discharging belt conveyor width | 1200mm |
| Model | Feeding Equipment | Crushing Equipment | Max. preparedness capacity(t/h) | Overall Dimension | Weight (t) | ||
| Model | Model | Max. Feeding Size(mm) | output (t/h) | Transport dimension (need tear-down) | |||
| KE600-1 | TSW0936 | PE600×900Ⅱ | 500 | 90-180 | 100-210 | 12150×2600×3950(mm) | 43 |
| KE750-1 | TSW1139 | PE750×1060 | 630 | 110-300 | 130-330 | 13000×2850×4400mm | 61 |
| KE760-1 | TSW1139 | PEW760 | 640 | 150-310 | 170-330 | 13000×2800×4200(mm) | 55 |
| KE860-1 | TSW1345 | PEW860 | 720 | 200-420 | 230-450 | 14600×3000×4500(mm) | 64 |
| KE1100-1 | TSW1548 | PEW1100 | 930 | 300-600 | 350-650 | 14050×2900×4000(mm) | 96 |
| KF1214Ⅱ-1 | TSW0936 | PFW1214Ⅱ | 500 | 110-190 | 120-210 | 12150×2600×3980(mm) | 48 |
| KF1214Ⅱ-1 | TSW1139 | PFW1214Ⅱ | 500 | 110-190 | 140-230 | 13000×2800×4200(mm) | 53 |
| KF1315Ⅱ-1 | TSW1345 | PFW1315Ⅱ | 600 | 180-280 | 190-310 | 14600×3100×4500(mm) | 61 |
| KF1415Ⅱ-1 | TSW1548 | PFW1415Ⅱ | 700 | 280-450 | 310-480 | 14050×3000×4000(mm) | 74 |
