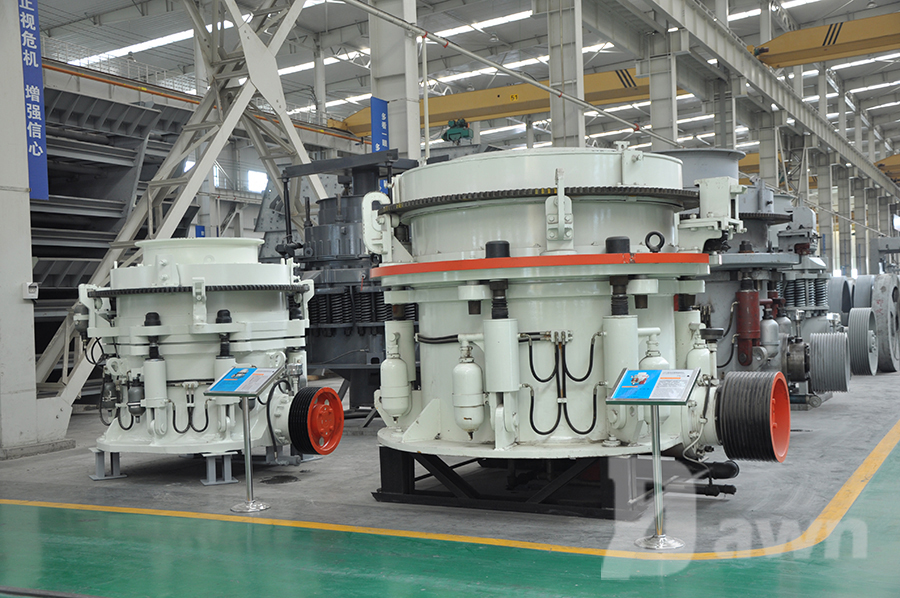

Cone Crusher
Cone crusher, was designed primarily with a view to achieving top performance in the field of fine-reduction crushing. HPT Hydraulic Cone Crusher, HST Hydraulic Cone Crusher,CS Series Cone Crusher, each one has its advantages. Let check the below and find the right for you.
HPT Hydraulic Cone Crusher
Working Principle
Under the leading role of eccentric sleeve, the movable cone of the HPT Series high-efficiency hydraulic cone crusher does rotary and pendulum movement which drives the broken walls squeeze and twist the raw material between the rolling ace tabular wall and it. According to laminated theory, the raw material is crushed and polished following their own texture by the force from different directions. Stable aggregate are produced finally. The eligible raw material falls down from the gap of the broken wall. The others will be kept crushing until it reaches the desired size.
HST Hydraulic Cone Crusher
Working Principle
The electromotor leads the eccentric sleeve to rotate by the V-belt, drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom.
Specifications – Technical Data
| Type | Cavity (coarse/fine) | Close Side feed opening(mm) | Min CSS (mm) | Capacity (tPh) | Power KW(HP) |
| HPT300 | C1 Extra Coarse | 230 | 25 | 220-440 | 250(350) |
| C2 Coarse | 210 | 20 | 190-380 | ||
| M Medium | 150 | 16 | 175-320 | ||
| F1 Fine | 105 | 13 | 110-260 | ||
| F2 Extra Fine | 80 | 10 | 100-240 | ||
| HPT500 | C1 Extra Coarse | 330 | 38 | 425-790 | 400(500) |
| C2 Coarse | 290 | 30 | 380-700 | ||
| M Medium | 210 | 22 | 330-605 | ||
| F1 Fine | 130 | 16 | 270-535 | ||
| F2 Extra Fine | 95 | 13 | 200-430 | ||
| HPT800 | C1 Extra Coarse | 350 | 38 | 545-1200 | 630(850) |
| C2 Coarse | 300 | 32 | 495-1050 | ||
| M Medium | 265 | 25 | 470-950 | ||
| F1 Fine | 220 | 17 | 385-730 | ||
| F2 Extra Fine | 150 | 14 | 310-600 | ||
| F3 Extra Fine | 90 | 10 | 260-550 |
| Model | Cavity | Maximum feed size(mm) | CSS min-max(mm) | Capacity(tph) | Power KW(HP) | Dimension (L×W×H) (mm) | Weight (t) |
| HST100 | S1(Extra Coarse) | 240 | 22-38 | 85-170 | 90(125) | 1535×1275×2710 | 9.6 |
| S2(Medium Coarse) | 200 | 19-32 | 70-130 | ||||
| HST160 | S1(Extra Coarse) | 360 | 25-54 | 120-345 | 132(175) | 2045×1635×3040 | 15.5 |
| S2(Medium Coarse) | 300 | 22-48 | 105-305 | ||||
| S3(Coarse) | 235 | 19-48 | 90-275 | ||||
| HST250 | S1(Extra Coarse) | 450 | 35-54 | 255-605 | 220(300) | 2675×2550×3940 | 28 |
| S2(Medium Coarse) | 400 | 29-51 | 215-515 | ||||
| S3(Coarse) | 300 | 25-51 | 190-490 | ||||
| HST315 | S1(Extra Coarse) | 560 | 41-76 | 335-1050 | 315(400) | 3110×2945×4480 | 43.5 |
| S2(Medium Coarse) | 500 | 38-70 | 305-895 | ||||
| Model | Cavity | Maximum feed size(mm) | CSS min-max(mm) | Capacity(tph) | Power KW(HP) | Dimension (L×W×H) (mm) | Weight (t) |
| HST100 | H1(Fine) | 135 | 10-32 | 45-130 | 90(125) | 1540×1280×2300 | 7.5 |
| H2(Medium Fine) | 65 | 8-19 | 35-80 | ||||
| H3(Extra Fine) | 38 | 4-16 | 27-60 | ||||
| HST160 | H1(Fine) | 185 | 13-38 | 66-210 | 132(175) | 2000×1550×2600 | 10 |
| H2(Medium Fine) | 90 | 10-32 | 65-165 | ||||
| H3(Extra Fine) | 50 | 6-25 | 48-105 | ||||
| HST250 | H1(Fine) | 215 | 16-44 | 110-395 | 220(300) | 2315×1830×2940 | 19.5 |
| H2(Medium Fine) | 110 | 13-38 | 115-340 | ||||
| H3(Extra Fine) | 70 | 8-32 | 90-255 | ||||
| HST315 | H1(Fine) | 275 | 16-51 | 170-665 | 315(400) | 2740×2200×3590 | 28.5 |
| H2(Medium Fine) | 135 | 16-38 | 190-505 | ||||
| H3(Extra Fine) | 65 | 13-22 | 205-320 | ||||
| HST560 | H1(Fine) | 300 | 22-70 | 448-1331 | 560(750) | 3300×2600×4463 | 51 |
| H2(Medium Fine) | 155 | 19-70 | 400-1098 | ||||
| H3(Extra Fine) | 80 | 10-44 | 280-669 | ||||
| HST750 | H1(Fine) | 370 | 25-70 | 480-2500 | 630(850) | 3800×3100×5305 | 80 |
| H2(Medium Fine) | 195 | 22-70 | 552-1115 | ||||
| H3(Extra Fine) | 80 | 10-51 | 364-790 |
